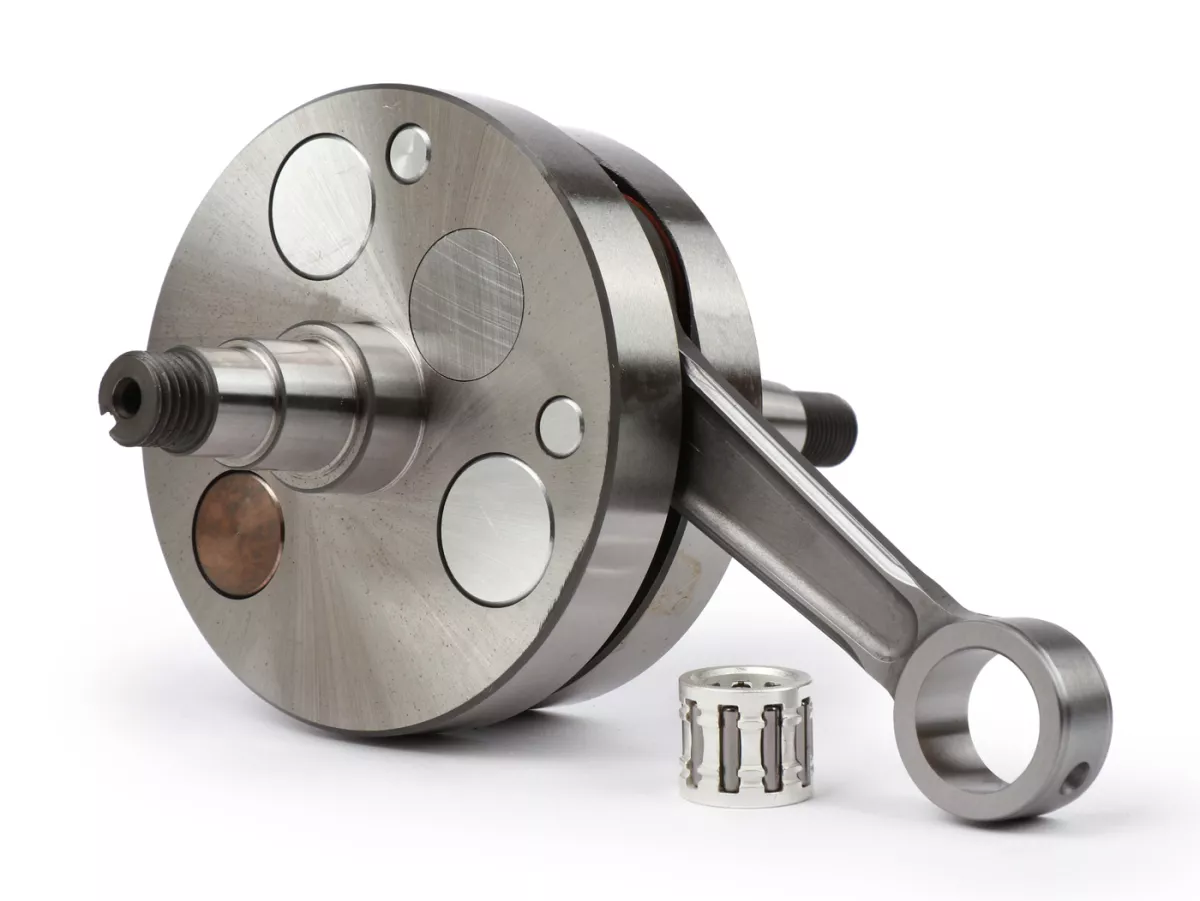

Crankshaft -VMC RACING (for reed valve intake) full circle web, 45mm stroke, 87mm connecting rod- Ø 20mm cone – Vespa V50, PK50 – used e.g. for cylinder VMC Racing 100cc RVA economico

Description

The shaft has a stroke of 45mm (series = 51mm) and features a 105mm long connecting rod (series 97mm) which has also been widened in its latest evolutionary stage to a proud 5mm thickness. The crank webs are larger in diameter (both sides: 87mm) than those of a series shaft (86.8mm).
As a result, the crankcase must be widened in diameter (spindle dimension 88mm).
The longer connecting rod requires either a matching cylinder or a corresponding spacer.
Shortfacts:

• forged crank

webs

• 45mm stroke
• forged CNC connecting rod, 105mm
• silver cage
• lower connecting rod pin 20mm
• bearing seat lima side
• 20mm

AI-translation
