Carburettor kit -BGM PRO 195-225 cc- Lambretta LI, LIS, SX, TV (2nd series, 3rd series), DL, GP – Ø=30 YSN PHBH di tendenza adesso!

Description

Complete Lambretta carburetor kit for all RT 195 and RT 225 engines. Can of course also be used with all other piston-driven cylinders with the 200 cc intake manifold.

You can find our Lambretta carburetor adjustment pdf under downloads. It lists a number of setups that can be used perfectly as starting jetting.

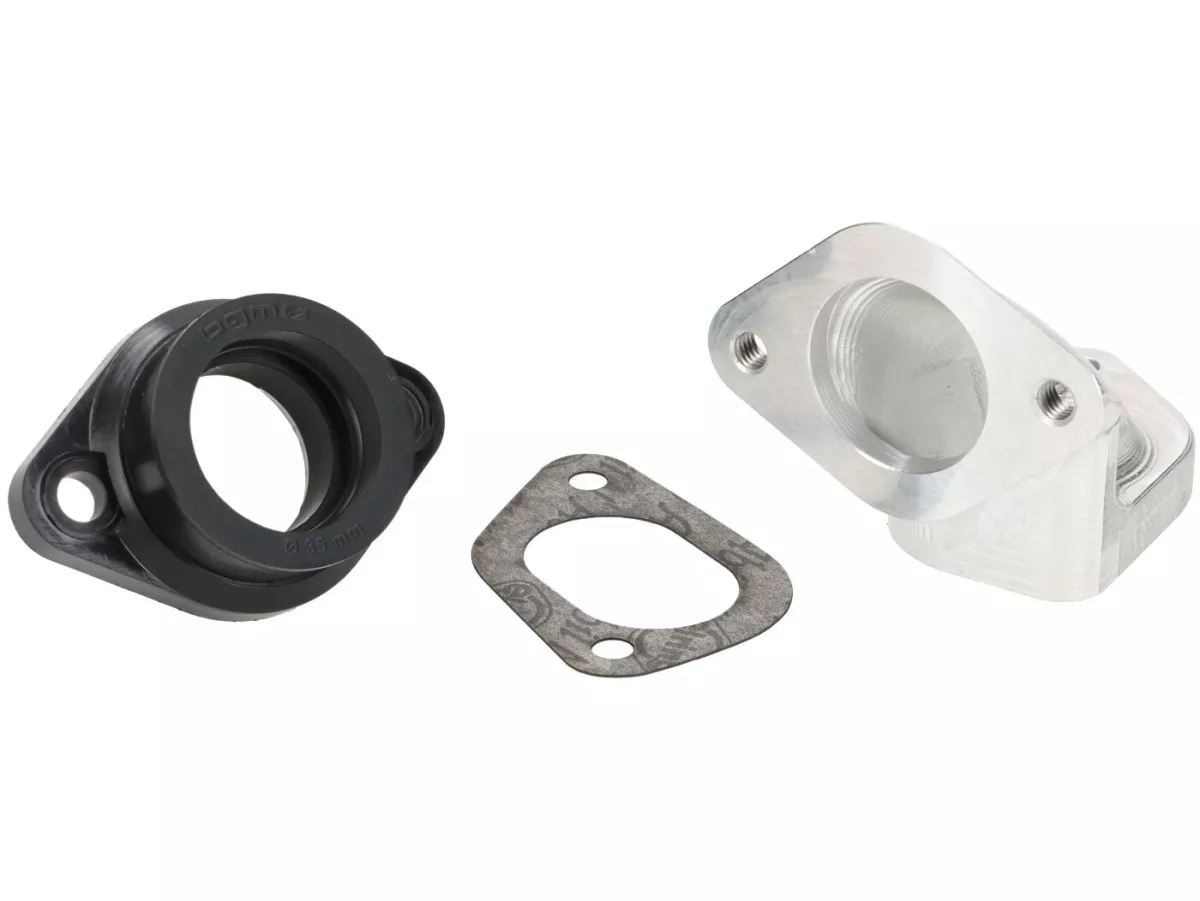

This set consists of the YSN PHBH 30 carburetor and the bgm intake manifold with flange connection. Thanks to the intake manifold, the carburetor is positioned nice and straight and as far away from the side cover as possible. There is one restriction with regard to the cylinder cover, here the dl / GP version should be used without the small cap under the carburetor. Alternatively, the cap should be removed on cylinder covers for Li, TV and SX models.

In addition to the installation material, a carburettor inner cable, cable choke and two bgm main jet sets (100 – 122 and 125 – 147) as well as a secondary jet set (40-58) and needle set (X2, X3, X4, X5, X7, X13, X25, X32, X44, X61) are included in the scope of delivery.AI-translation
