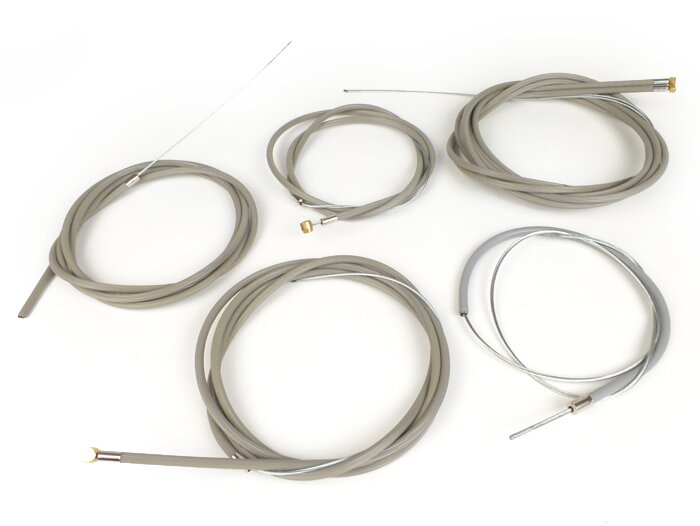

Cable set -VESPA- Vespa Wideframe V30, V33, VM, VN, VU, VL, VNA, VNB1T, VNB2T, VNB3T (-083324), VBA, VBB1T (-126334), GS150 / GS3 (VS1T)

Description

Cable set for Vespa models starting from the so called ‘lamp down’ models up to 1962.
The models VNB and VBB.can only use this set up to FIN VNB3T 083324 or VBB1T 126334.
If it concerns larger chassis numbers please use article 7675727.
Cross pattern and colouring like original (except rear brake cable).
In contrast to the later T2-3 and GS models, the outer cover of the rear brake cable is also kept short (because the abutment is located at the cable entrance of the frame and not at the engine block as later), but the brake cable itself is with 1.9mm much thinner…
Very nice kit without inner PTFE coating, therefore the outer diameter of the cables with Ø5.3mm is almost the same as the original.

Perfect set for a restoration true to the original Made in Germany.

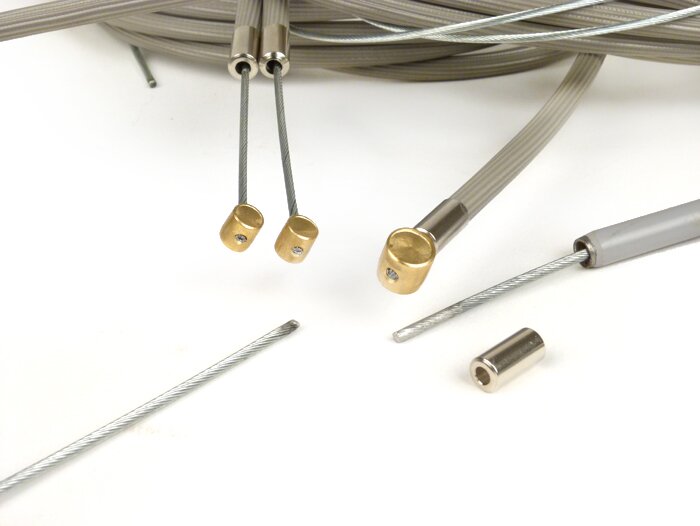

Recommended accessories: Our cable nipple set (see accessories).
Dimensions length (outside/inside):

• brake cable front: 1160mm / 1360mm (nipple 8x8mm)
• brake cable rear: 330mm / 1030mm (without nipple)
• gas cable: 1810mm / 2000mm (nipple 6,4×5,8mm)
• clutch cable: 1840mm / 2020mm (nipple 8x8mm)
• Shift cable: 1920mm / 2110mm (nipple 6,3×5,8mm)

Dimensions diameter (outside/inside)

• Brake cable front: Ø=5,3mm / Ø=1,8mm
• brake cable rear: Ø=6,5mm / Ø=2,5mm
• gas cable: Ø=5.3mm / Ø=1.3mm
• clutch cable: Ø=5.3mm / Ø=1.8mm
• Clutch cable: Ø=5.3mm / Ø=1.5mm

AI-translation
